3D Compaction Control for Asphalt Compactors

Paving Control for Asphalt Pavers

Eliminate the guesswork, roll a more efficient pattern, increase productivity and save fuel. The surface will speak for itself.

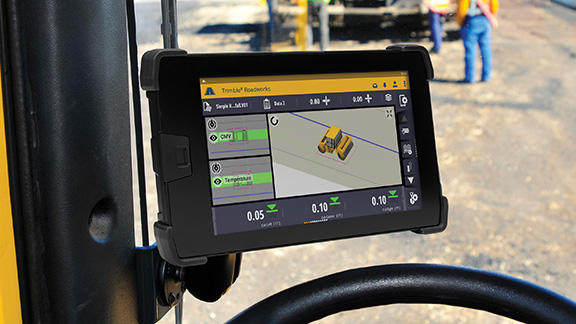

A Full-Color Graphical Display

View compaction progress, pass counts and mat temperature information on an easy-to-use color display

Flexibility to Fit Your Needs

• Monitor pass counts only or pass counts plus temperature
• Add temperature sensors or precision accuracy
• Wirelessly transfer Intelligent Compaction data from the machine to the office with the Trimble SNM941 Connected Site Gateway
• Collect compatible data files that are ready to import into a Veta intelligent construction project

Reliability of the Trimble Paving Workflow

• Use one workflow from the initial design model to the last pass of the compactor
• Leverage on-machine components for milling, asphalt paving and compaction
• Monitor and analyze compaction efficiency from the office

Software and Hardware Features

• Android-based software with the same familiar user interface as existing Roadworks applications
• Intuitive, easy to learn and configurable for a variety of workflow views: real-time temperature mapping, compaction progress, pass counts, and optional display and recording of the compacted asphalt stiffness
• Powerful and rugged touch-screen displays designed for the field

Intelligent Compaction

• Compact surface material to the desired compaction stiffness target and monitor site volumes simultaneously, in real time
• Ensure optimal compaction per the target temperature range, reducing rework and material waste with real-time temperature map monitoring
• Achieve increased durability, stability and load-bearing capacity
• Support a variety of jobsite needs and specifications

Monitoring and Analysis

• Supervisors and quality managers can monitor compaction activities to track and report progress
• Real-time compaction data to improve layer management
• Monitor pass counts and compaction measurement values (CMV) over the entire area
• Improve testing success, reduce rework, operator hours and lower ongoing machine maintenance costs
• Reduce over-compaction to optimize fuel use and machine time
• Better understand work previously completed versus work completed that day

Connected Construction

• Reduce waste and overruns with efficient communication and data transfer using Trimble WorksManager Software and Trimble WorksOS Software—mobile-friendly software that easily manages data and technology assets across jobsites
• With the SNM941, wirelessly transfer 3D designs from the office to the machine
• Productivity data collected from the machine can automatically sync back to the office
• Office-only licenses offer extended functionality
